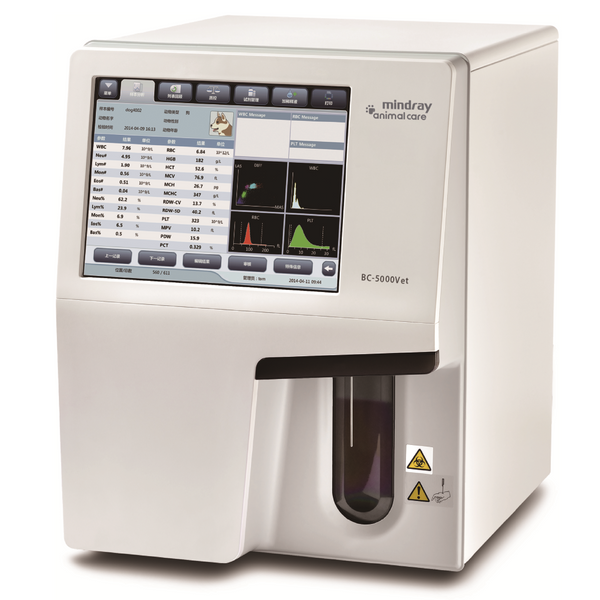

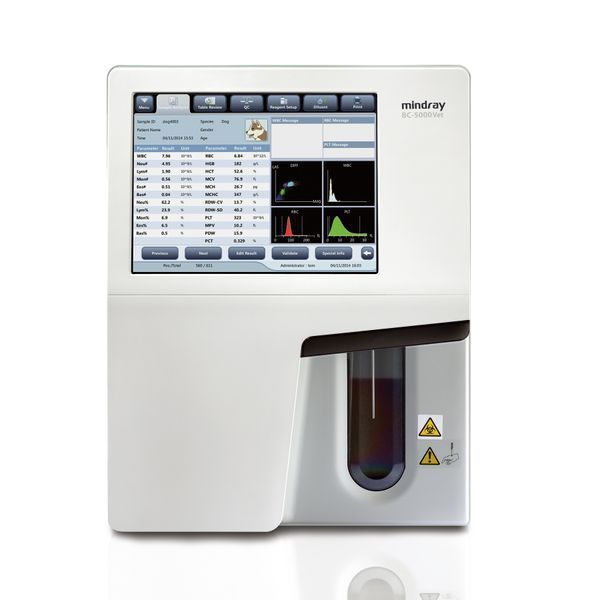

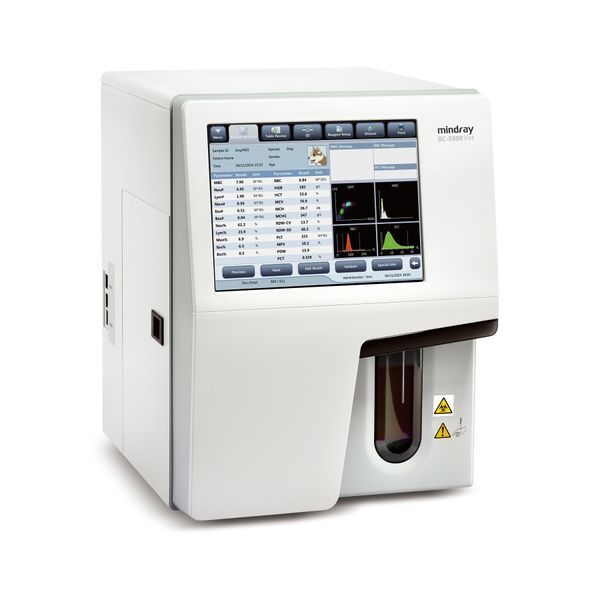

Mindray BC-5000 Vet – Compact and High-Precision Hematology Analyzer for Veterinary Use

Reliable Blood Analysis for Accurate Diagnostics

The Mindray BC-5000 Vet is a modern 5-DIFF hematology analyzer designed for veterinary laboratories, clinics, and diagnostic centers. Thanks to advanced technologies and a compact design, it provides accurate blood analysis with minimal reagent consumption, making it an optimal solution for facilities with a medium sample flow.

Key Advantages of the Mindray BC-5000 Vet

Advanced Analysis Technologies

• Tri-angle laser scatter – triangular laser scattering for improved leukocyte differentiation.
• Focused flow + chemical staining – high accuracy in 5-part leukocyte differentiation.
• Independent basophil channel – ensures even clearer results.

Analysis of a Wide Range of Parameters

• Determination of 23 parameters, including WBC, RBC, HGB, PLT, HCT, MCV, MCH, MCHC, and others.

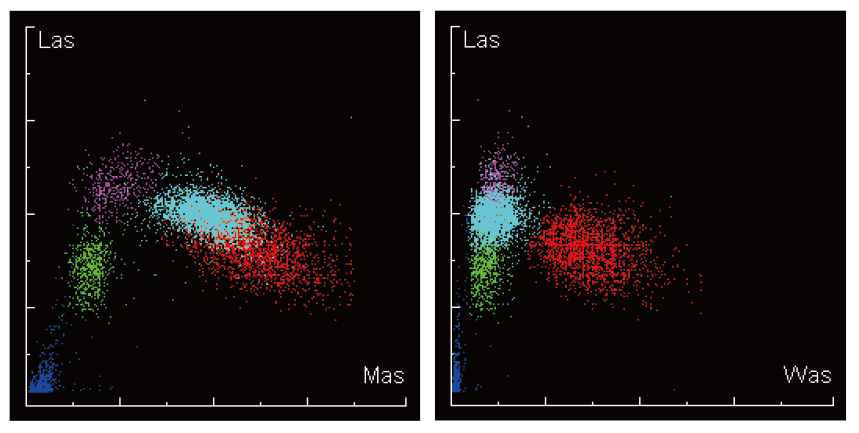

• Display of graphical data: 3 histograms (WBC, RBC, PLT) and 3 scattergrams (WBC).

Support for Different Animal Species

• 16 standard species are built in, including dog, cat, horse, cow, ferret, rabbit, goat, sheep, and others.
• +20 additional pre-programmed species, expanding the analyzer’s testing capabilities.

Speed and Productivity

• Processing of up to 60 samples per hour.
• Minimum sample volume: 15 µL for whole blood, 20 µL for prediluted samples.

Intuitive Interface and Ease of Use

• 10.4-inch TFT touchscreen – easy operation without the need to connect a PC.
• Storage of up to 40,000 results, including graphs and numerical data.
• Support for a bidirectional LIS system for fast data transmission.

Cost Efficiency and Space Optimization

• Compact dimensions: 410 × 325 × 435 mm; weight – 25 kg.
• Built-in reagent compartment saves workspace.
• Use of only 3 reagents with a long shelf life, which significantly reduces costs.

Scanning Technology:

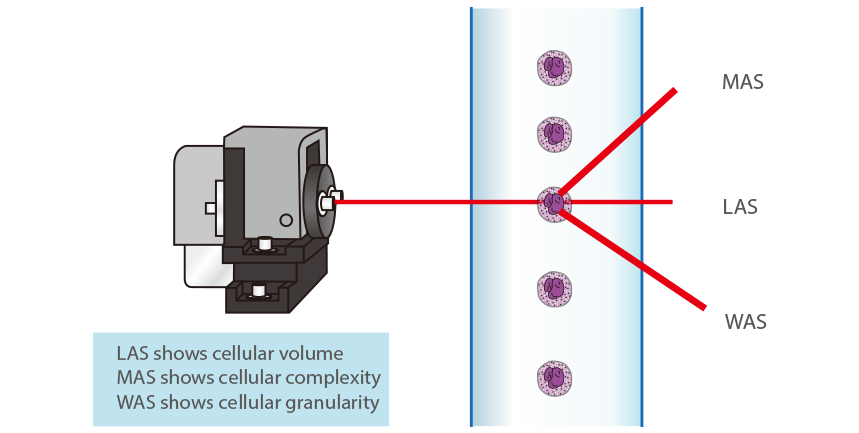

Tri-angle laser scatter + focused flow + chemical dye create the conditions for improved 5-part leukocyte differentiation, even in samples with a high eosinophil content.

Reagents for the Mindray BC-5000 Vet Hematology Analyzer

• Mindray V-52 SET – veterinary reagent kit for the Mindray BC-5000 Vet analyzer.
• Diluent V-52D – dilutes blood samples and provides a stable environment for blood cell counting and size determination.
• Lyse reagent No. 1 (Lyse V-52 DIFF) – used for erythrocyte lysis and leukocyte differentiation.
• Lyse reagent No. 2 (Lyse V-52 LH) – used for erythrocyte lysis, leukocyte counting and differentiation, and hemoglobin determination.
• Mindray Probe Cleanser – probe cleanser containing active enzymes for cleaning the sampling probe chambers from clogging.
