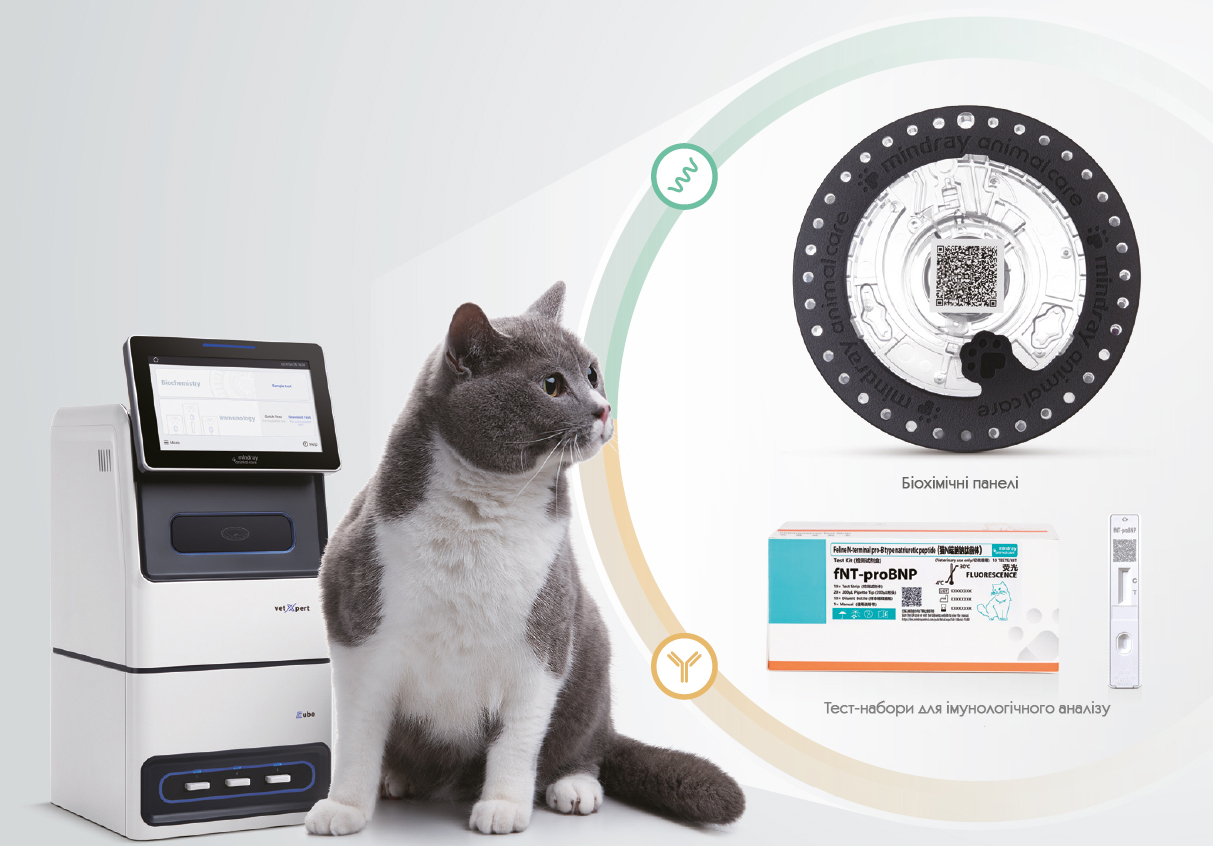

Integrated Veterinary Analyzer vetXpert Cube
The vetXpert Cube veterinary analyzer combines the capabilities of biochemical and immunological analyzers. Thanks to its compact size, it can fit into any veterinary laboratory, even a very small one, complement the equipment of a mobile laboratory, and its comprehensive capabilities allow a wide range of different tests and studies to be performed.
In general, vetXpert is a comprehensive laboratory solution that can unite a full range of products into one veterinary alliance, including the vetXpert information system itself, a hematology analyzer, a biochemical analyzer, an immunology analyzer, and more. By implementing such a comprehensive vetXpert laboratory solution, we can meet the growing needs of all types of laboratories in veterinary hospitals of any size across different countries.

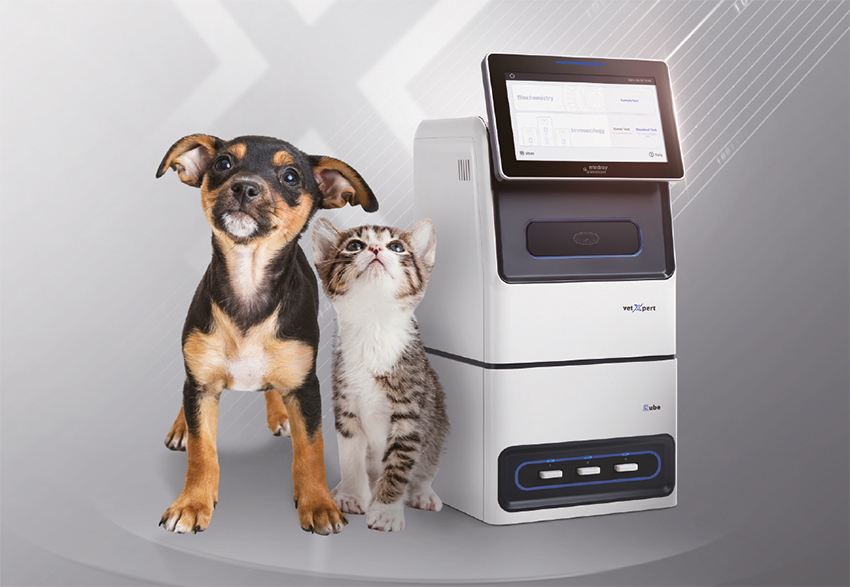

Smart Cube — Veterinary Expert
 |
Integrated Analyzer with High EfficiencyThe vetXpert Cube can perform both biochemical and immunological analyses. The device allows diagnosis of more than 70 different parameters. |
 |
Intelligent ConnectivityThe vetXpert system can significantly increase the diagnostic efficiency of your laboratory by providing complete control of hematology, biochemistry, and immunology analyzer instruments. |
 |
Comprehensive Diagnostic Panels28 parameters in one panel, enabling complete in-clinic laboratory testing for companion animals in just 12 minutes using 100 µL of blood. |
 |
Qualitative Tests Can Be Read by the AnalyzerThe analyzer can read both quantitative and qualitative cartridges. The device is distinguished by its accuracy and sensitivity to small-volume samples. |
 |
The Best Choice for DiagnosticsA complete set of multi-parameter panels is available to cover different disease diagnostic requirements. |
 |
Wide Disease CoverageMore than 30 immunology parameters can be assessed, fully covering the requirements for in-clinic testing. |
Testing Parameters of the vetXpert Cube Analyzer
| Type | Description | Parameters |
| Biochemical | comprehensive diagnostic panel | TP, ALB, GLOB, A/G, ALT, AST, AST/ALT, ALP, GGT, TBIL, BUN, CREA, BUN/CREA, AMY, TC, GLU, Na+, K+, Na/K, Cl-, PHOS, Ca, CaxP, tCO2, CK, LDH, TBA*, TG* |
| Biochemical | diagnostic / health check panel | TP, ALB, GLOB, A/G, ALT, ALP, GGT, TBIL, BUN, CREA, BUN/CREA, AMY, TC, GLU, PHOS, Ca, CaxP, CK, TG* |
| Biochemical | pre-anesthetic assessment panel | TP, ALB, GLOB, A/G, ALT, ALP, BUN, CREA, BUN/CREA, GLU |
| Biochemical | liver check panel | TP, ALB, GLOB, A/G, ALT, AST, AST/ALT, ALP, GGT, TBIL, BUN, TC, GLU, TBA* |
| Biochemical | kidney check panel | TP, ALB, GLOB, A/G, BUN, CREA, BUN/CREA, PHOS, Ca, CaxP, UA |
| Biochemical | electrolyte panel | BUN, CREA, BUN/CREA, GLU, Na+, K+, Na/K, PHOS, Ca, CaxP, Cl-, tCO2, Mg |
| Biochemical | intensive care panel | ALT, BUN, CREA, BUN/CREA, GLU, Na+, K+, Na/K, Cl-, tCO2 |
| Biochemical | avian / reptile panel | TP, ALB, GLOB, A/G, AST, BUN, TC, GLU, Na+, K+, Na/K, PHOS, Ca, CaxP, CK, LDH, UA, Mg, TBA*, TG* |
| Immunological | inflammation, pancreatitis, kidney diseases, heart diseases, infectious diseases, tick-borne diseases, antibody titers | CPV Ag*, CCV Ag, CDV Ag*, CIV Ag, HW Ag, E. canis Ab, Anapl. Ab, Lyme Ab, Giardia Ag, FPV Ag*, CoV Ag, FToxop Ab*, FIV Ab, FeLV Ag, cCRP, fSAA, cPL, fPL, cSDMA, fSDMA, cD-dimer, cCortisol, cT4, fT4, cTSH, cProg, CAV Ab*, CDV Ab*, CPV Ab*, FPV Ab*, FHV Ab*, FCV Ab*, cNT-proBNP, fNT-proBNP, cTnI, fTnI |
Technical Specifications of the vetXpert Cube
| Operating principle | colorimetric method, immunochromatography method |
| Animal species |
biochemical analysis: more than 20 species immunological analysis: cats and dogs |
| Sample type |
biochemical analysis: plasma, serum, whole blood immunological analysis: whole blood, plasma, serum, pre-treated eye, nasal and throat secretions, feces, etc. |
| Sample volume | 2–100 µL |
| Testing speed | 5–15 min |
| Display | 7-inch color touchscreen |
| Interface | 2 USB, 1 LAN, Wi-Fi support |
| Operating environment |
temperature: 15–32°C humidity: 20%–85% |
| Dimensions (D × W × H) |
250 × 195 × 440 mm |
| Weight | 8 kg |
 |
|||||
| Biochemical Analysis | Hematology Analysis | Immunology Analysis | Other | ||
 |
 |
 |
 |
||
| Biochemical panels | 3-DIFF analysis | 5-DIFF analysis | 6-DIFF analysis | Immunology rapid tests | In the future |
 |

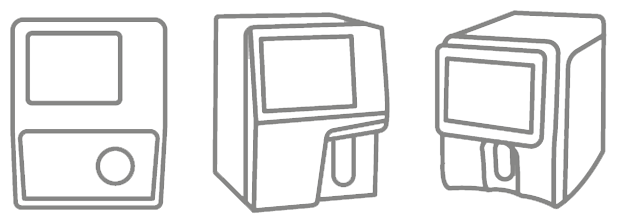

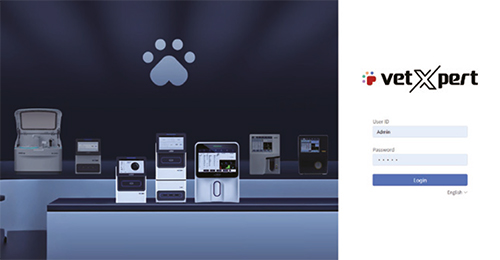

One System, More InstrumentsComplete control of hematology, biochemistry, and immunology analyzer instruments, improving diagnostic efficiency. |
|
 |

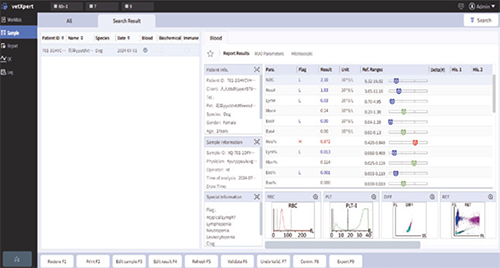

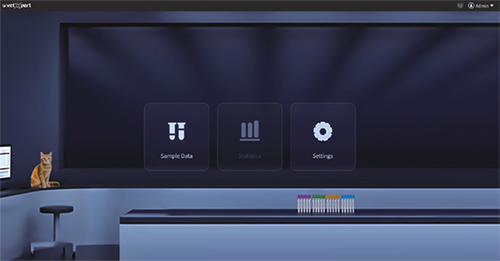

Patient Information and Data ManagementUnlimited data storage and the ability to edit parameters.
|
|
|
Report PrintingPrinting consolidated full-color reports with diagnostic tips, making explanations easier for pet owners. |
||
 |
PMS System ConnectionThe practice management system (PMS) can be quickly and easily connected to the vetXpert system. |
